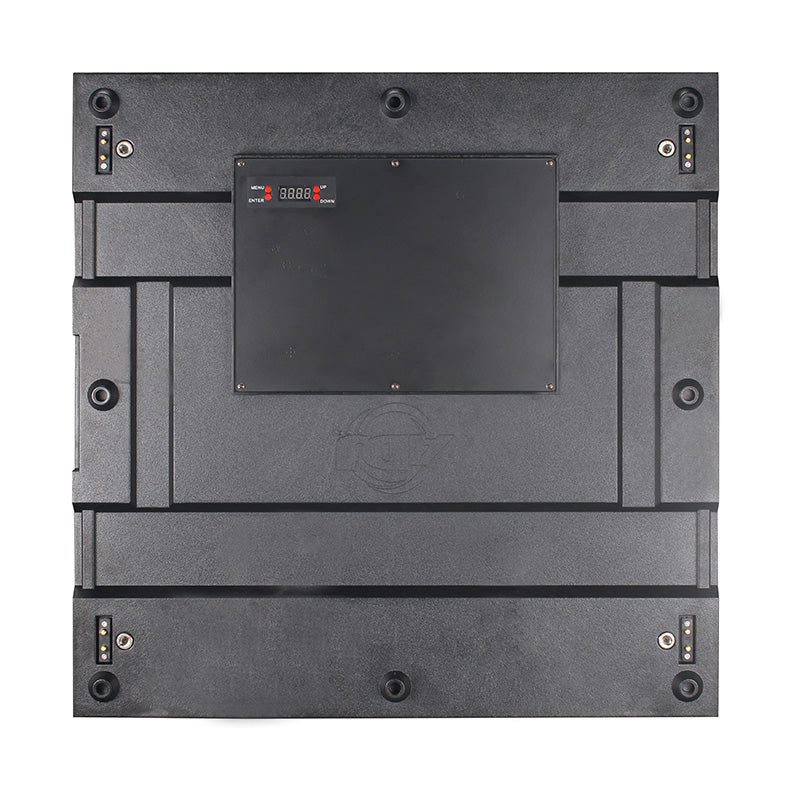

MDF3
MDF3

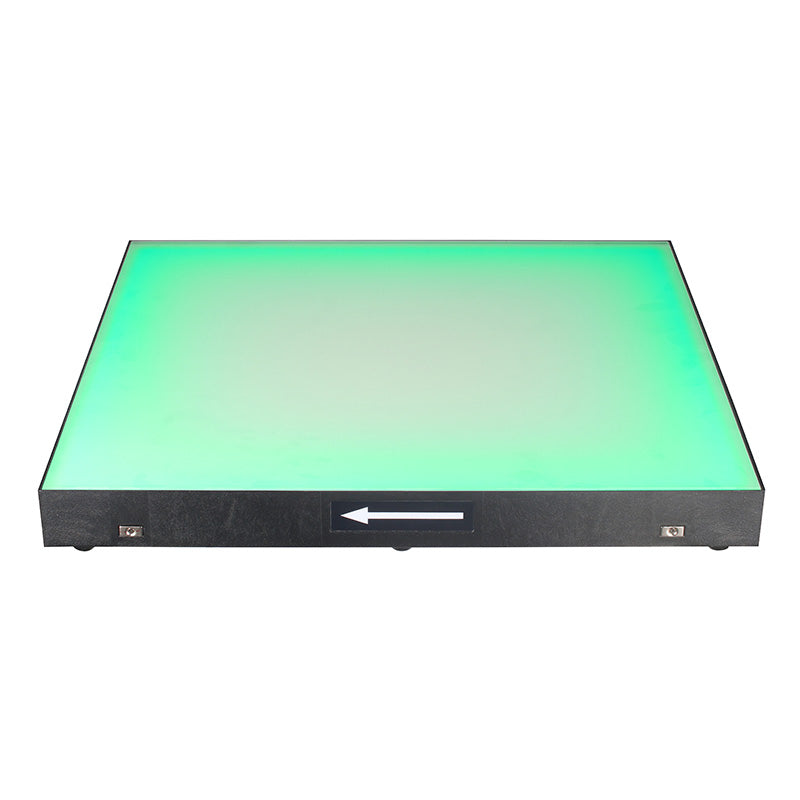

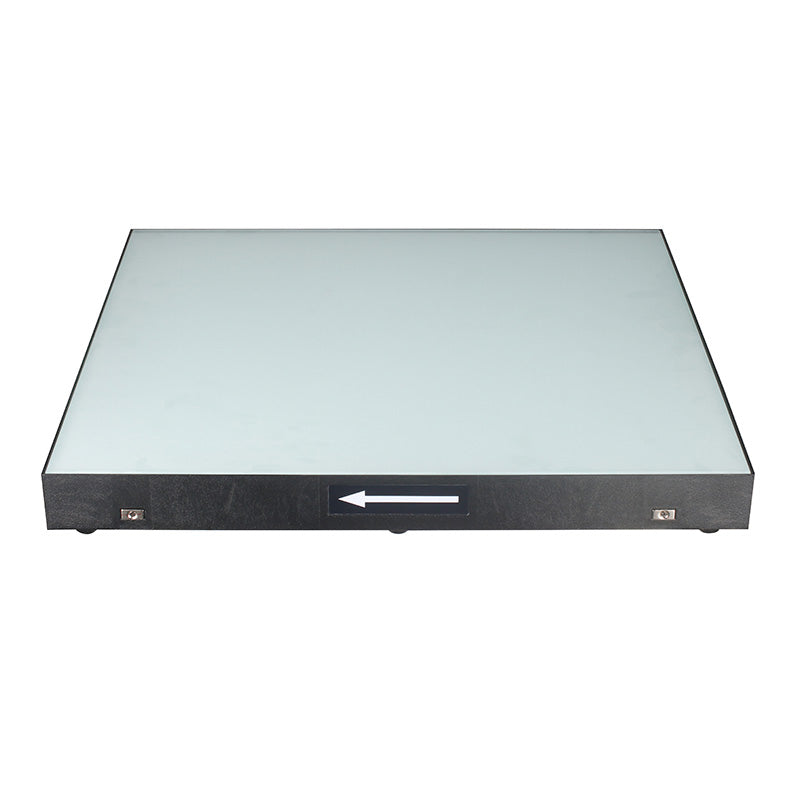

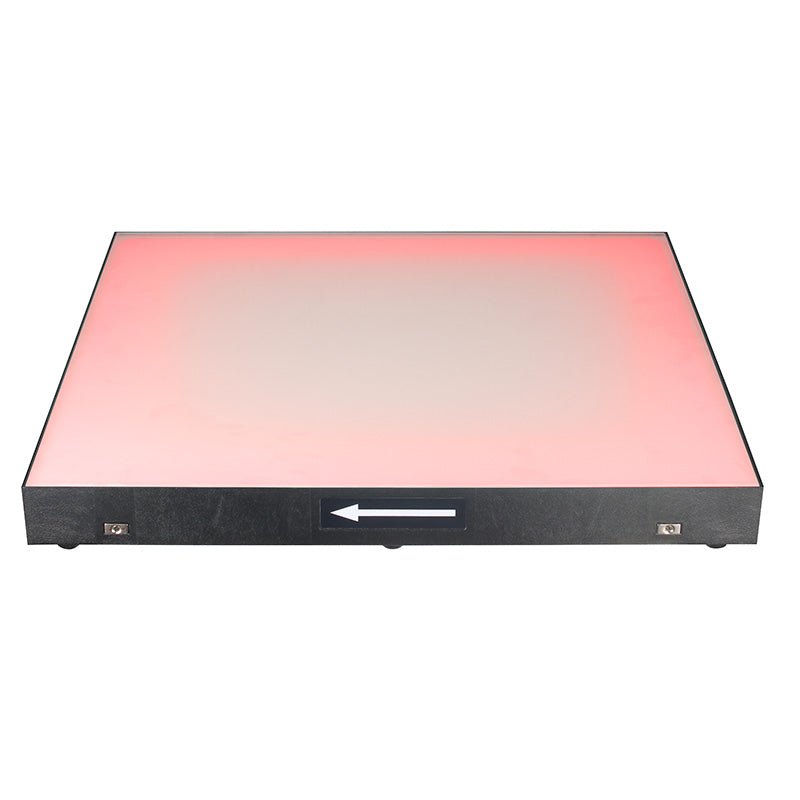

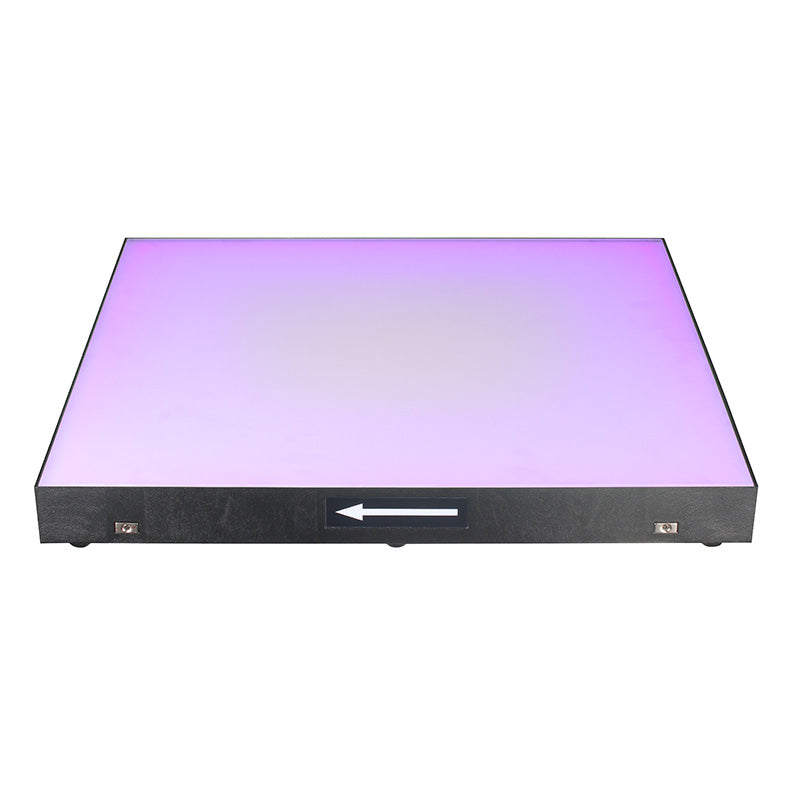

Transform dance floors, stages, and entertainment venues into vibrant illuminated environments with the ADJ MDF3 RGB LED Floor Panel System. Designed for professional lighting applications, the MDF3 combines high-brightness RGB LED technology, a durable tempered glass surface, and a modular design to create colorful, visually engaging floor displays.
Each MDF3 panel measures 23.6 x 23.6 inches (600 x 600mm) and features RGB 3-in-1 LEDs that produce a wide range of colors and dynamic lighting effects. With a 160-degree viewing angle, the panels provide broad visibility, making them ideal for nightclubs, special events, stage productions, and entertainment installations.
The modular design allows multiple MDF3 panels to be connected together to create illuminated floor layouts of various sizes. Waterproof interconnection cables transfer control signals and data from one panel to the next, simplifying system expansion and installation. Each panel features a tempered glass surface supported by a durable ABS base, with a rated load-bearing capacity of 61.5 lbs. per square foot (300 kg/m²).
The MDF3 system operates on 24V DC power supplied by a compatible MDF power supply, with several power supply options available to accommodate installations ranging from small configurations to systems containing more than 100 panels. Each panel consumes a maximum of just 15 watts.
For lighting control, the MDF3 supports industry-standard DMX512 through a compatible MDF power supply and a standard DMX controller. Four DMX channel modes (3, 5, 7, and 10 channels) provide flexibility for creating custom lighting effects. Additional control options include sound, audio, and remote control operation.
A comprehensive range of optional accessories, including power cables, connection brackets, edging ramps, corner ramps, and panel removal tools, allows the MDF3 system to be configured for different installation requirements.

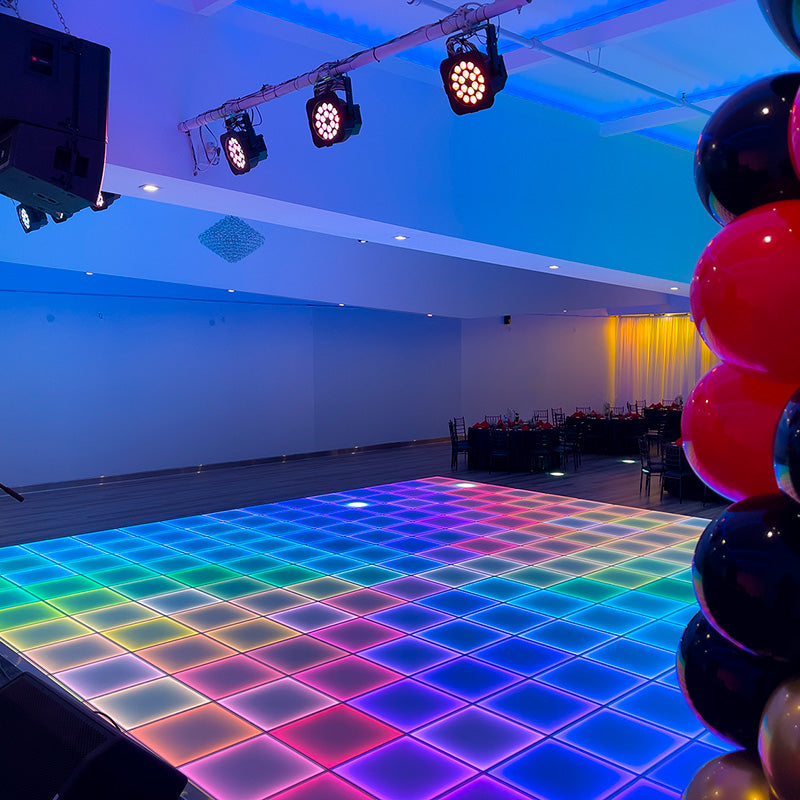

Whether creating an illuminated dance floor for a special event or incorporating dynamic floor lighting into a permanent entertainment installation, the ADJ MDF3 delivers colorful RGB effects, flexible system expansion, and professional DMX control.
MDF3
Transform dance floors, stages, and entertainment venues into vibrant illuminated environments with the ADJ MDF3 RGB LED Floor Panel System. Designed for professional lighting applications, the MDF3 combines high-brightness RGB LED technology, a durable tempered glass surface, and a modular design to create colorful, visually engaging floor displays.
Each MDF3 panel measures 23.6 x 23.6 inches (600 x 600mm) and features RGB 3-in-1 LEDs that produce a wide range of colors and dynamic lighting effects. With a 160-degree viewing angle, the panels provide broad visibility, making them ideal for nightclubs, special events, stage productions, and entertainment installations.
The modular design allows multiple MDF3 panels to be connected together to create illuminated floor layouts of various sizes. Waterproof interconnection cables transfer control signals and data from one panel to the next, simplifying system expansion and installation. Each panel features a tempered glass surface supported by a durable ABS base, with a rated load-bearing capacity of 61.5 lbs. per square foot (300 kg/m²).
The MDF3 system operates on 24V DC power supplied by a compatible MDF power supply, with several power supply options available to accommodate installations ranging from small configurations to systems containing more than 100 panels. Each panel consumes a maximum of just 15 watts.
For lighting control, the MDF3 supports industry-standard DMX512 through a compatible MDF power supply and a standard DMX controller. Four DMX channel modes (3, 5, 7, and 10 channels) provide flexibility for creating custom lighting effects. Additional control options include sound, audio, and remote control operation.
A comprehensive range of optional accessories, including power cables, connection brackets, edging ramps, corner ramps, and panel removal tools, allows the MDF3 system to be configured for different installation requirements.
Whether creating an illuminated dance floor for a special event or incorporating dynamic floor lighting into a permanent entertainment installation, the ADJ MDF3 delivers colorful RGB effects, flexible system expansion, and professional DMX control.
Specifications
Light Source
- Light Source: RGB 3-in-1 LED
- Brightness: High Brightness
- Viewing Angle: 160°
- Color Mixing: RGB
Control
- Control Protocol: DMX512
- DMX Signal Input: 3-Pin XLR (via compatible MDF power supply)
- DMX Channel Modes: 3, 5, 7, and 10 Channels
-
Control Modes:
- DMX512 Console Control
- Sound Control
- Audio Control
- Remote Control
- Panel Interconnection: Waterproof cables for signal and data transfer between panels
Construction
- Surface Material: Tempered Glass
- Base Material: ABS
- Modular Design: Supports multiple interconnected panels
- Load-Bearing Capacity: 61.5 lbs./ft² (300 kg/m²)
Power
- Input Voltage: 24V DC
- Power Source: Compatible MDF Series Power Supply (required)
- Power Connection: Physical cable connection to compatible MDF power supply
- Maximum Power Consumption: 15W per panel
Dimensions and Weight
- Panel Dimensions (L x W x H): 23.6" x 23.6" x 2.8" (600 x 600 x 70mm)
- Panel Weight: 26.57 lbs. (12.05 kg)
Operating Environment
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -4°F to 113°F (-20°C to 45°C)
Certifications and Approvals
- cETLus Certified
- Conforms to UL Standard 1573
- Certified to CSA C22.2 No. 166
- CE Compliant
MDF3 Series Products and Accessories
-
Compatible Power Supplies
- MDF232 Powers up to 9 panels
- MDF248 Powers up to 15 panels
- MDF264 Powers up to 20 panels
- MDF281 Powers up to 40 panels
- MDF454 Powers up to 117 panels
- MDF477 Powers up to 156 panels
Power Cables and Installation Accessories
- MDF297 Power Main Cable – 16 ft.
- MDF313 Power Main Cable – 20 ft.
- MDF320 Power Main Cable – 25 ft.
- MDF336 Power Main Cable – 50 ft.
- MDF388 Connection / Power Transfer Bracket
- MDF368 Panel Removal Tool
- MDF390 Power Supply Ramp
- MDF401 Edging Ramp
- MDF417 Corner Ramp
Important:MDF3 floor panels require a compatible MDF Series power supply for operation. Power supplies, cables, and installation accessories are available separately.
Specifications are subject to change without notice.
Downloads
| Filename | Document type | File type |
|---|---|---|
| MDF3 - DMX Traits | DMX Traits | |
| MDF3 3D Cad Drawing | CAD Drawing | DWG |
| MDF3 - 2D Cad Drawing | CAD Drawing | DWG |
| MDF3 - Dimensional Drawing | Dimensional Drawings | |
| MDF3 User Manual | User Manual |
